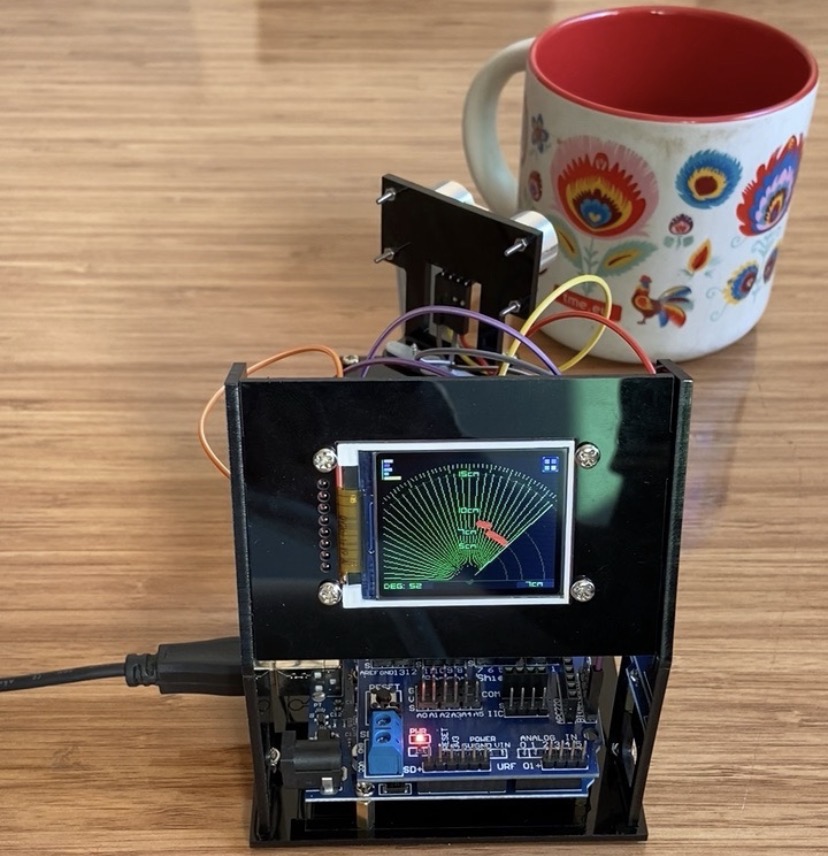

DIY Mini Radar Kit: 1.8″ SPI TFT Display & Ultrasonic Scanning with Arduino Uno R3

Construct a standalone desktop radar scanner that shows nearby obstacles in real time on a colorful 1.8-inch TFT screen! This project uses an Arduino Uno R3 and a Sensor Shield v5.0 to track things up to 100 cm away by putting an HC-SR04 ultrasonic sensor onto a revolving SG90 servo motor.

arduino-uno-r3-mini-radar-tft-display

Watch the full video

For written instructions, continue reading this page, or watch the video guide.

Components Used

  • Microcontroller: Arduino Uno R3 Development Board
  • Expansion Shield: Sensor Shield Version 5.0
  • Sensor: HC-SR04 Ultrasonic Distance Sensor
  • Actuator: SG90 Micro Servo Motor
  • Display: 1.8-inch SPI TFT Display Screen (128×160 resolution, ST7735)
  • Frame & Hardware:
Arduino-Uno-R3-Development-board-Sensor-Shield-Version-5.0-hcsr04-ultrasonic-distance-sensor-sg90-micro-servo-motor-1.8-inch-spi-tft-display-screen

Find the assembly kit in TEMU

Ultrasonic Module Distance Measurement Scanning Detector Kit

Frame & Hardware

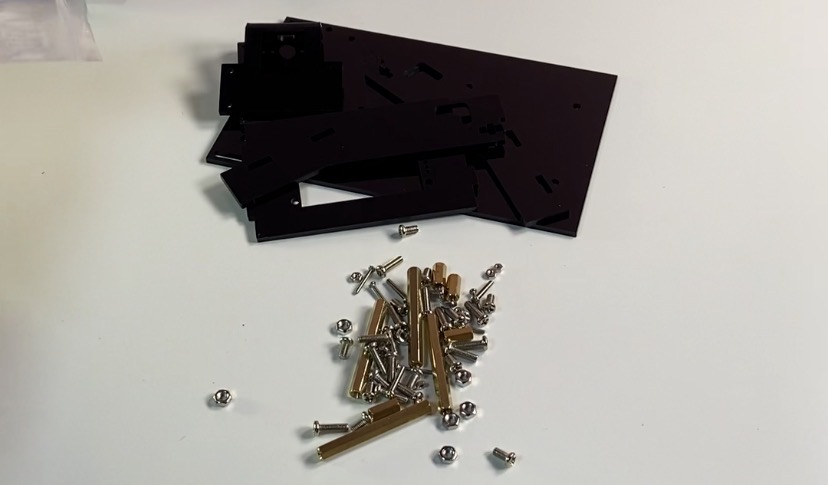

  • Laser-cut Acrylic Base, Side, Display, and Sensor Mounting Plates
  • 4x M3 x 40mm Copper Standoffs
  • 8x M3 x 10mm Copper Standoffs
  • 6x M3 x 10mm Screws & 6x M3 Nuts
  • 1x M2 x 12mm Screw & 1x M2 Nut
  • 1x M1.6 x 12mm Screw & 1x M1.6 Nut
  • Servo mounting screws and horn package

Mechanical Assembly Steps

Prepare & Assemble Ultrasonic Sensor Horn

Every acrylic plate should have its protective coating removed. Using the M1.6 nut and M1.6 x 12mm screw, attach the HC-SR04 ultrasonic sensor to the appropriate acrylic plate.

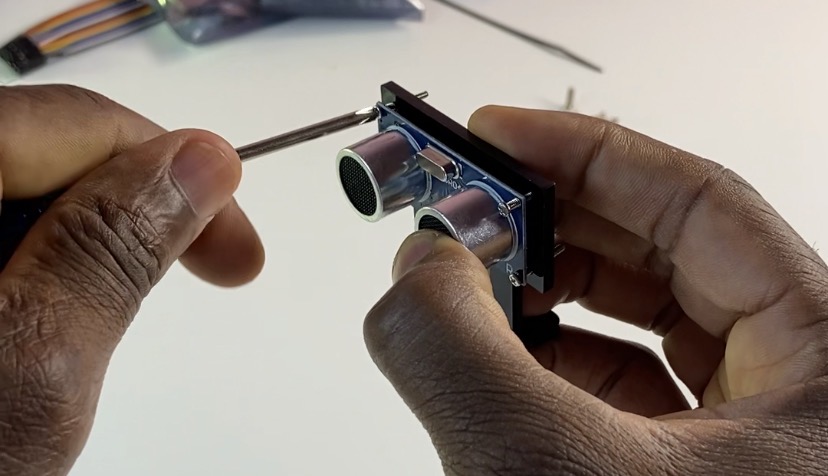

Using-the-M1.6-nut-and-M1.6-x-12mm-screw-attach-the-HC-SR04-ultrasonic-

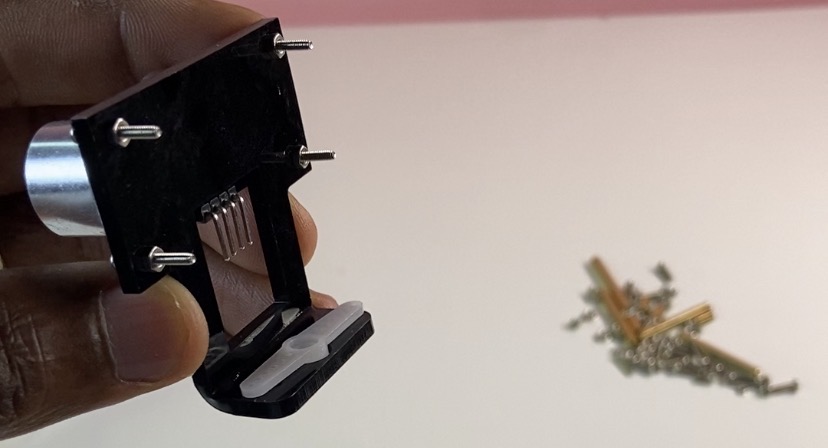

Next, use the screws included in the servo motor package to fasten the servo horn to the rear of this sensor plate assembly.


Mount Servo Motor & Base Standoffs

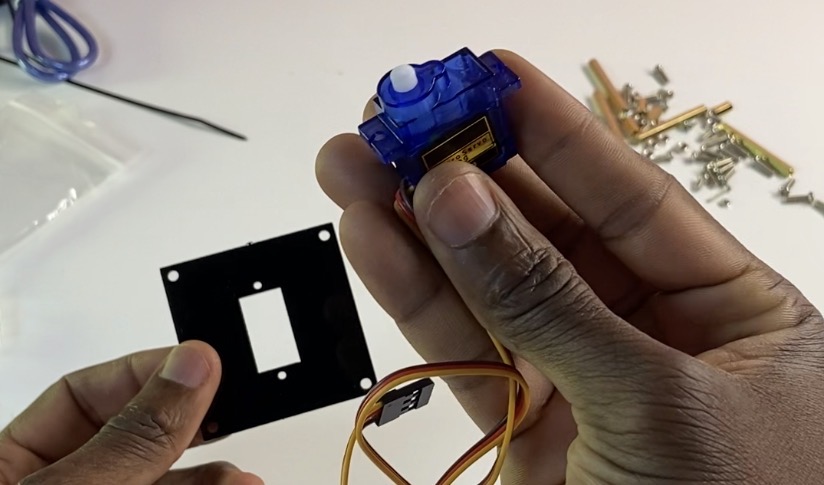

Use the M2 x 12mm screw and M2 nut to fasten the SG90 servo motor to its acrylic plate.

SG90-servo-motor-to-its-acrylic-plate
Screenshot

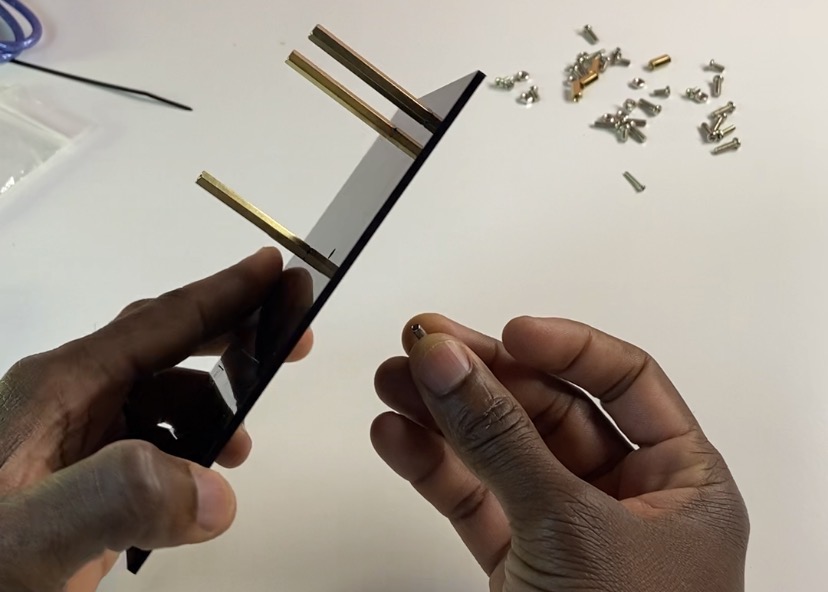

Thread four M3 x 40mm copper standoffs into the acrylic base plate

M3-x-40mm-copper-standoffs

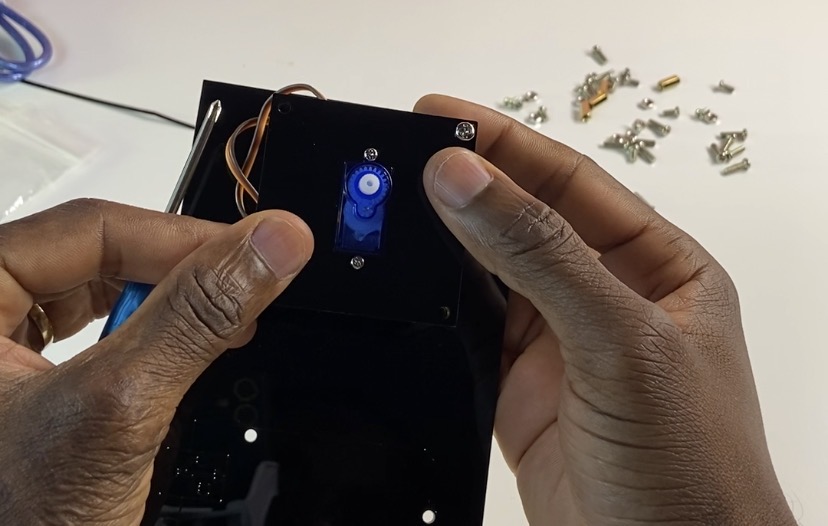

Mount the acrylic plate containing the servo motor onto four M3 x 40mm copper standoffs that have been threaded into the acrylic base plate.

Mount-the-acrylic-plate-containing-the-servo-motor-onto-four-M3-x-40mm-copper-standoffs

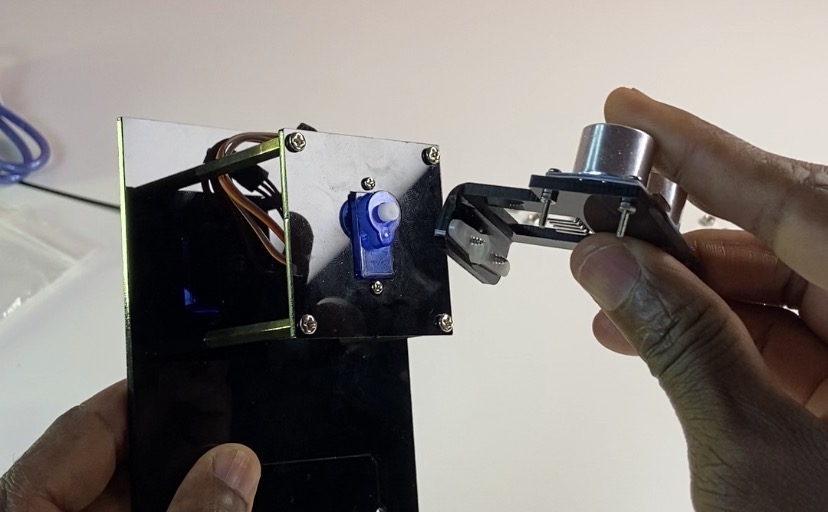

Using its central mounting screw, fasten the servo horn—which has the sensor assembly attached—to the servo motor shaft.

fasten-the-servo-horn—which-has-the-sensor-assembly-attached—to-the-servo-motor-shaft.

Mount Arduino Uno R3 & Sensor Shield

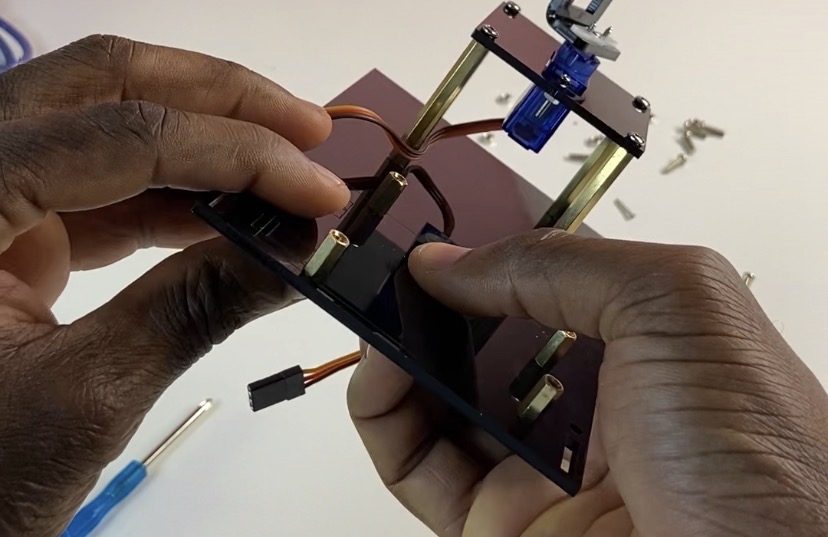

Four M3 x 10mm copper standoffs should be fastened to the base plate.

Four-M3-x-10mm-copper-standoffs

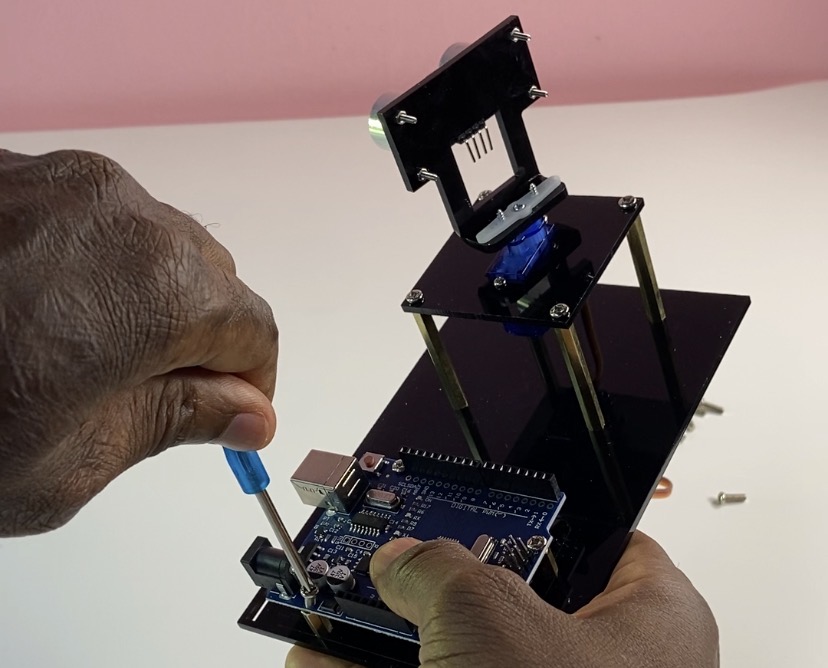

Place the Arduino Uno R3 board on top of these standoffs and fasten it with four more M3 x 10mm standoffs.

Arduino-Uno-R3-board

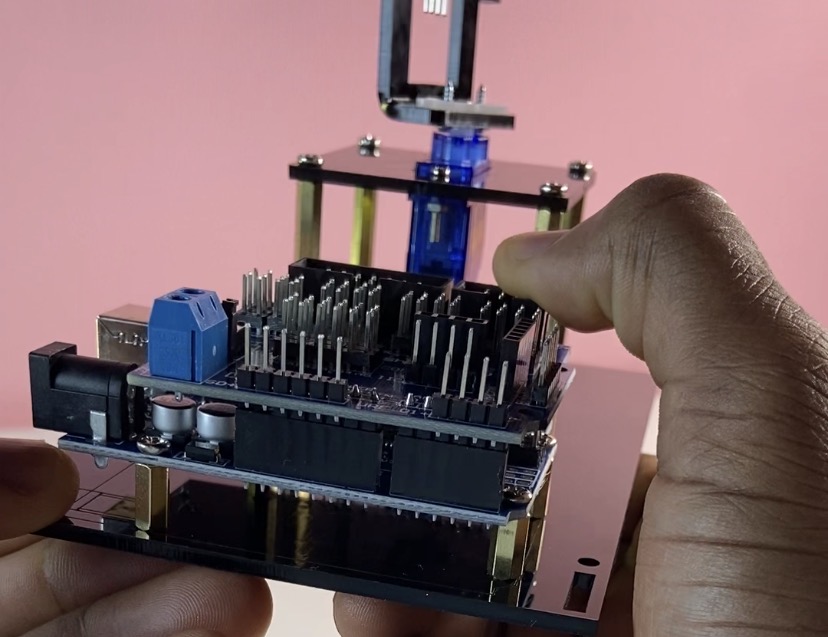

Firmly align all of the pins on the Arduino Uno R3 by pressing the Sensor Shield Version 5.0 onto it.

Sensor-Shield-Version-5.0

Enclose Acrylic Frame & TFT Screen

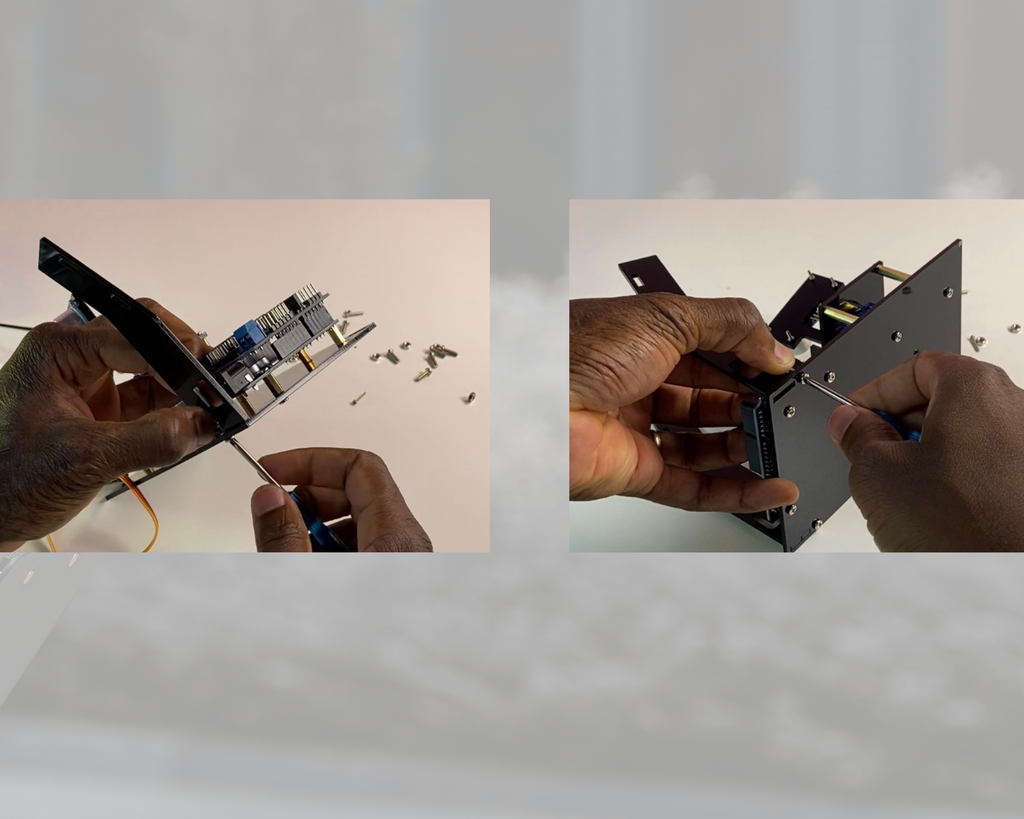

Next to the microcontroller, fasten the left and right acrylic plates with two M3 nuts and two M3 x 10mm screws.

left-and-right-acrylic-plates-with-two-M3-nuts-and-two-m3-x-10mm-screws

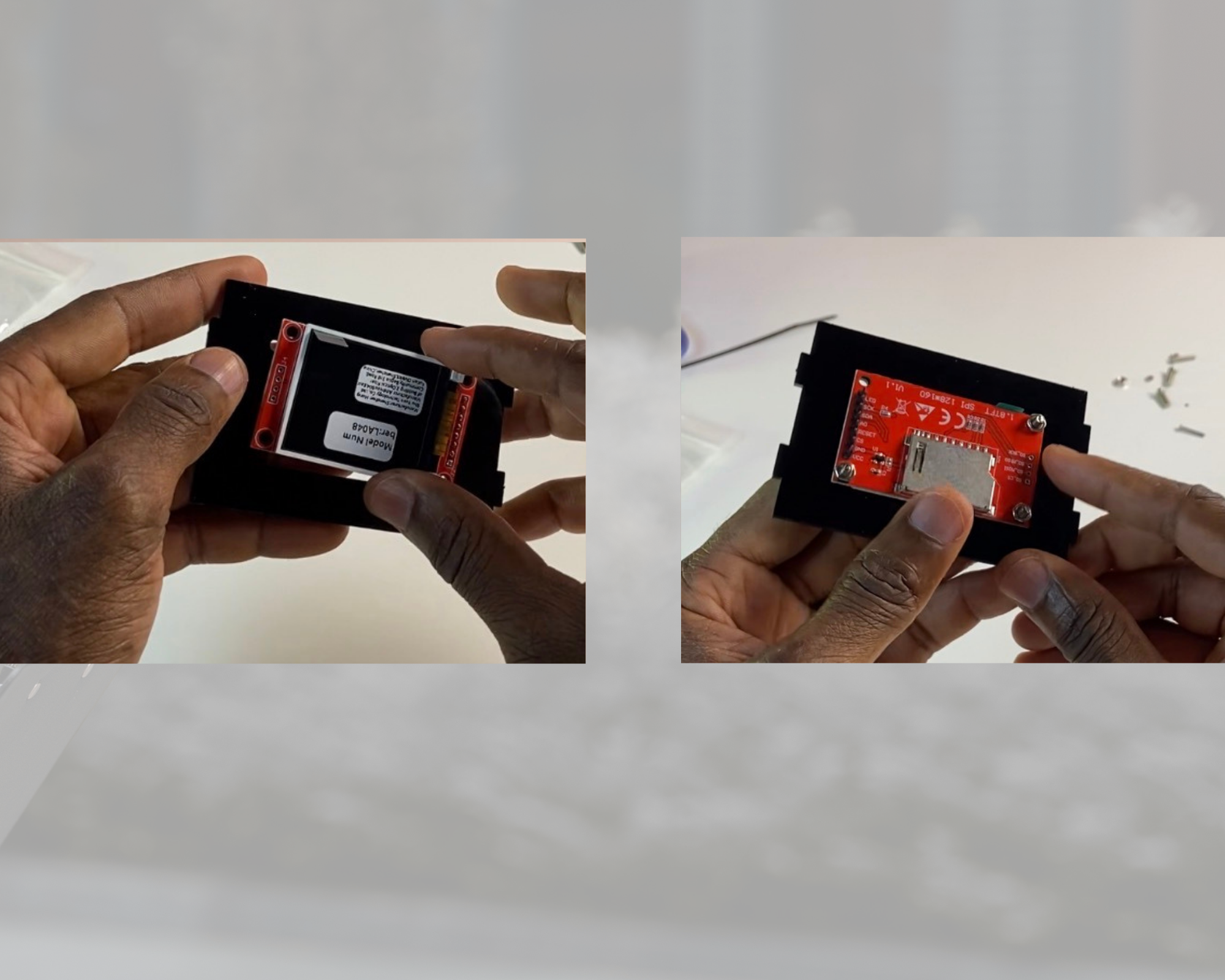

Secure the 1.8-inch SPI TFT display to its mounting plate using four M3 x 10mm screws and four M3 nuts.


tft-screen

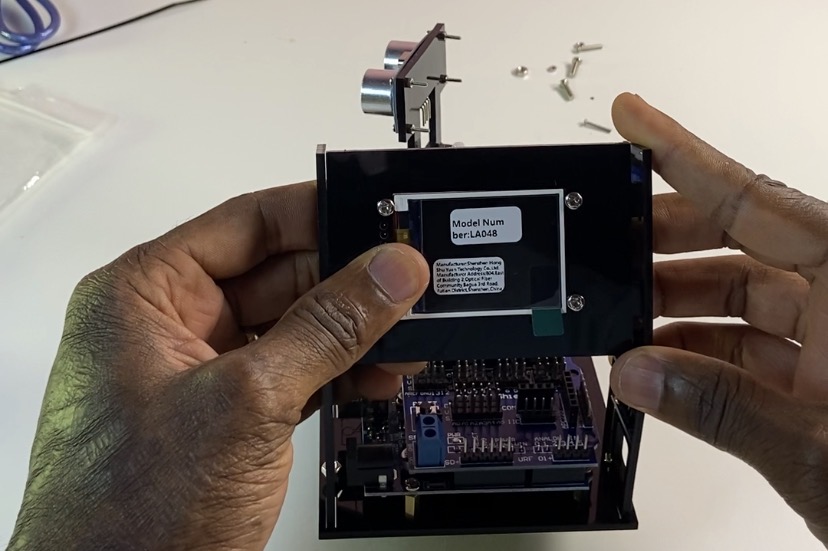

Place this assembled screen unit between the two side plates after fastening the 1.8-inch SPI TFT display to its mounting plate with four M3 x 10mm screws and four M3 nuts.

1.8-inch-SPI-TFT-display

Circuit Wiring & Schematic Description

Using the Sensor Shield v5.0, connect the peripherals to the dedicated headers:

Sensor Shield Version 5.0SG90 Servo Motor1.8″ SPI TFT DisplayHC-SR04 Ultrasonic Sensor
Pin 3Signal Pin
VCCPin (+5V)
GroundGNDGNDGND
Pin 10CS (Chip Select)
Pin 8RESET
Pin 9A0 (Data/Command)
Pin 11SDA (MOSI)
Pin 13SCK (Clock)
LED (Backlight)Connect to one of the Bluetooth line header VCC/3.3V pin
Pin 5Echo
Pin 6Trig
V Pin (+5V)VCC

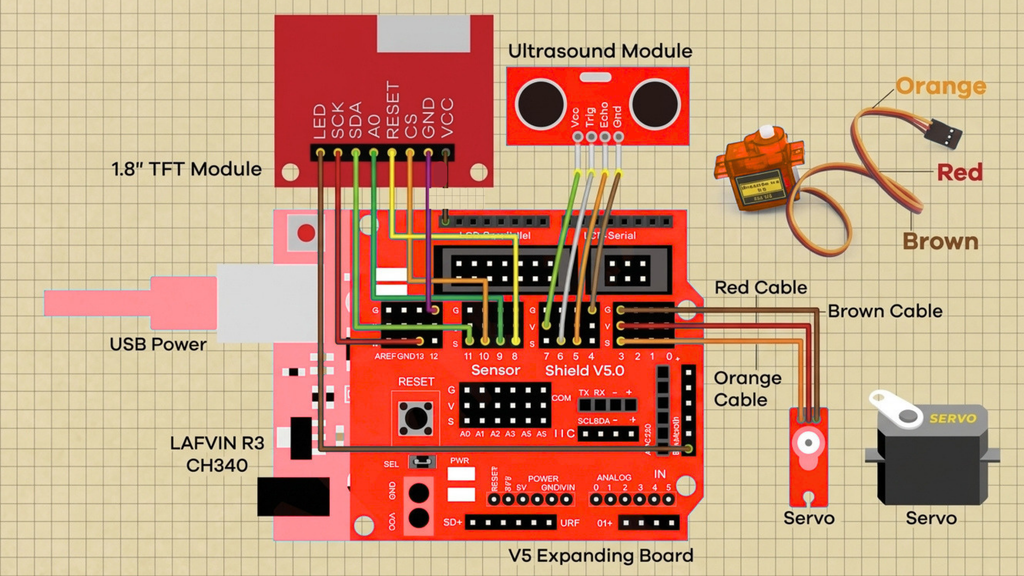

circuit-diagram-servo-motor-tft-screen-ultrasonic-sensor-mini-radar-circuit

Ucglib library

High-performance graphics driver for color TFT displays (ST7735 hardware SPI support)

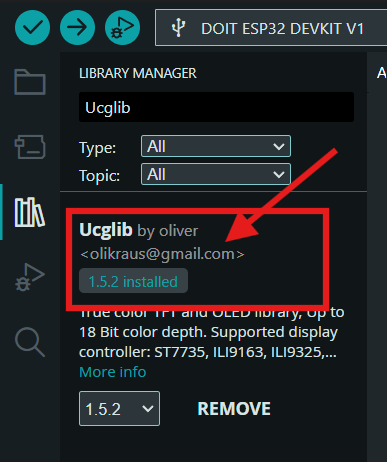

Ucglib-arduino-ide-library

Servo library

Built-in hardware timer control for the SG90 servo motor

servo-arduino-ide-library

SPI library

Built-in communication library for driving the TFT display

Arduino Code

/* mini radar kit */
#include <Servo.h>
#include <SPI.h>
#include "Ucglib.h"

#define trigPin   6          // Ultrasonic Module Trig -> D6
#define echoPin   5          // Ultrasonic Module Echo -> D5
#define ServoPin  3          // Servo Signal -> D3

int Ymax = 128;              // Vertical pixels of the screen
int Xmax = 160;              // Horizontal pixels of the screen
int Xcent = Xmax / 2;         // Horizontal screen center position
int base = 118;              // Baseline position
int scanline = 105;          // Radar scan line length

Servo baseServo;
Ucglib_ST7735_18x128x160_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);

void setup(void)
{
  ucg.begin(UCG_FONT_MODE_SOLID); // Initialize screen
  ucg.setRotate90();               // Set to horizontal orientation

  pinMode(trigPin, OUTPUT);        // Set Trig Pin mode
  pinMode(echoPin, INPUT);         // Set Echo Pin mode
  Serial.begin(115200);            // Serial communication speed
  baseServo.attach(ServoPin);      // Initialize servo

  // Screen startup interface
  ucg.setFontMode(UCG_FONT_MODE_TRANSPARENT);
  ucg.setColor(0, 0, 100, 0);
  ucg.setColor(1, 0, 100, 0);
  ucg.setColor(2, 20, 20, 20);
  ucg.setColor(3, 20, 20, 20);
  ucg.drawGradientBox(0, 0, 160, 128);
  ucg.setPrintDir(0);
  ucg.setColor(0, 5, 0);
  ucg.setPrintPos(27, 42);
  ucg.setFont(ucg_font_logisoso18_tf);
  ucg.print("Mini Radar");
  ucg.setColor(0, 255, 0);
  ucg.setPrintPos(25, 40);
  ucg.print("Mini Radar");
  ucg.setFont(ucg_font_helvB08_tf);
  ucg.setColor(0, 255, 0);
  ucg.setPrintPos(40, 100);
  ucg.print("Testing...");
  baseServo.write(90);

  // Test servo movement across 180 degrees
  for(int x = 0; x < 180; x += 5) {
    baseServo.write(x);
    delay(50);
  }
  ucg.print("OK!");
  delay(500);

  cls(); // Clear screen
  ucg.setFont(ucg_font_orgv01_hr);
  ucg.setFontMode(UCG_FONT_MODE_SOLID);
}

void cls() {
  ucg.setColor(0, 0, 0, 0);
  for(int s = 0; s < 128; s += 8) {
    for(int t = 0; t < 160; t += 16) {
      ucg.drawBox(t, s, 16, 8);
    }
  }
}

int calculateDistance() {
  long duration;
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  duration = pulseIn(echoPin, HIGH);
  return duration * 0.034 / 2;
}

void fix_font() {
  ucg.setColor(0, 180, 0);
  ucg.setPrintPos(70, 128 - 120 + 7);
  ucg.print("100cm");
  ucg.setPrintPos(70, 128 - 85 - 11);
  ucg.print("75cm");
  ucg.setPrintPos(70, 128 - 60 - 8);
  ucg.print("50cm");
  ucg.setPrintPos(70, 128 - 35 - 4);
  ucg.print("25cm");
}

void fix() {
  ucg.setColor(0, 40, 0);
  ucg.drawDisc(Xcent, base + 1, 3, UCG_DRAW_ALL);
  ucg.drawCircle(Xcent, base + 1, 115, UCG_DRAW_UPPER_LEFT);
  ucg.drawCircle(Xcent, base + 1, 115, UCG_DRAW_UPPER_RIGHT);
  ucg.drawCircle(Xcent, base + 1, 86, UCG_DRAW_UPPER_LEFT);
  ucg.drawCircle(Xcent, base + 1, 86, UCG_DRAW_UPPER_RIGHT);
  ucg.drawCircle(Xcent, base + 1, 58, UCG_DRAW_UPPER_LEFT);
  ucg.drawCircle(Xcent, base + 1, 58, UCG_DRAW_UPPER_RIGHT);
  ucg.drawCircle(Xcent, base + 1, 29, UCG_DRAW_UPPER_LEFT);
  ucg.drawCircle(Xcent, base + 1, 29, UCG_DRAW_UPPER_RIGHT);
  ucg.drawLine(0, base + 1, Xmax, base + 1);

  ucg.setColor(0, 120, 0);
  for(int i = 40; i < 140; i += 2) {
    if (i % 10 == 0)
      ucg.drawLine(105 * cos(radians(i)) + Xcent, base - 105 * sin(radians(i)), 113 * cos(radians(i)) + Xcent, base - 113 * sin(radians(i)));
    else
      ucg.drawLine(110 * cos(radians(i)) + Xcent, base - 110 * sin(radians(i)), 113 * cos(radians(i)) + Xcent, base - 113 * sin(radians(i)));
  }

  ucg.setColor(0, 200, 0);
  ucg.drawLine(0, 0, 0, 18);
  for(int i = 0; i < 5; i++) {
    ucg.setColor(random(255), random(255), random(255));
    ucg.drawBox(2, i * 4, random(14) + 2, 3);
  }

  ucg.setColor(0, 0, 180);
  ucg.drawFrame(146, 0, 14, 14);
  ucg.setColor(0, 0, 60);
  ucg.drawHLine(148, 0, 10);
  ucg.drawVLine(146, 2, 10);
  ucg.drawHLine(148, 13, 10);
  ucg.drawVLine(159, 2, 10);

  ucg.setColor(random(255), random(255), random(255));
  ucg.drawBox(148, 2, 4, 4);
  ucg.setColor(0, 220, 0);
  ucg.drawBox(148, 8, 4, 4);
  ucg.setColor(random(255), random(255), random(255));
  ucg.drawBox(154, 8, 4, 4);
  ucg.setColor(random(255), random(255), random(255));
  ucg.drawBox(154, 2, 4, 4);

  ucg.setColor(0, 0, 90);
  ucg.drawTetragon(62, 123, 58, 127, 98, 127, 102, 123);
  ucg.setColor(0, 0, 160);
  ucg.drawTetragon(67, 123, 63, 127, 93, 127, 97, 123);
  ucg.setColor(0, 255, 0);
  ucg.drawTetragon(72, 123, 68, 127, 88, 127, 92, 123);
}

void loop(void) {
  int distance;

  fix();
  fix_font();

  // Sweep backward (180 -> 4 degrees)
  for (int x = 180; x > 4; x -= 2) {
    baseServo.write(x);

    int f = x - 4;
    ucg.setColor(0, 255, 0);
    ucg.drawLine(Xcent, base, scanline * cos(radians(f)) + Xcent, base - scanline * sin(radians(f)));
    f += 2;
    ucg.setColor(0, 128, 0);
    ucg.drawLine(Xcent, base, scanline * cos(radians(f)) + Xcent, base - scanline * sin(radians(f)));
    f += 2;
    ucg.setColor(0, 0, 0);
    ucg.drawLine(Xcent, base, scanline * cos(radians(f)) + Xcent, base - scanline * sin(radians(f)));

    distance = calculateDistance();

    if (distance < 100) {
      ucg.setColor(255, 0, 0);
      ucg.drawDisc(1.15 * distance * cos(radians(x)) + Xcent, -(1.15 * distance * sin(radians(x))) + base, 1, UCG_DRAW_ALL);
    } else {
      ucg.setColor(255, 255, 0);
      ucg.drawDisc(116 * cos(radians(x)) + Xcent, -116 * sin(radians(x)) + base, 1, UCG_DRAW_ALL);
    }

    Serial.print("Degree:  ");
    Serial.print(x);
    Serial.print("    ,Distance:   ");
    Serial.println(distance);

    if (x > 70 && x < 110) fix_font();

    ucg.setColor(0, 0, 155, 0);
    ucg.setPrintPos(0, 126);
    ucg.print("DEG: ");
    ucg.setPrintPos(24, 126);
    ucg.print(x);
    ucg.print("  ");
    ucg.setPrintPos(125, 126);
    ucg.print("  ");
    ucg.print(distance);
    ucg.print("cm  ");
  }

  delay(50);
  cls();
  fix();
  fix_font();

  // Sweep forward (1 -> 176 degrees)
  for (int x = 1; x < 176; x += 2) {
    baseServo.write(x);

    int f = x + 4;
    ucg.setColor(0, 255, 0);
    ucg.drawLine(Xcent, base, scanline * cos(radians(f)) + Xcent, base - scanline * sin(radians(f)));
    f -= 2;
    ucg.setColor(0, 128, 0);
    ucg.drawLine(Xcent, base, scanline * cos(radians(f)) + Xcent, base - scanline * sin(radians(f)));
    f -= 2;
    ucg.setColor(0, 0, 0);
    ucg.drawLine(Xcent, base, scanline * cos(radians(f)) + Xcent, base - scanline * sin(radians(f)));

    distance = calculateDistance();

    if (distance < 100) {
      ucg.setColor(255, 0, 0);
      ucg.drawDisc(1.15 * distance * cos(radians(x)) + Xcent, -(1.15 * distance * sin(radians(x))) + base, 1, UCG_DRAW_ALL);
    } else {
      ucg.setColor(255, 255, 0);
      ucg.drawDisc(116 * cos(radians(x)) + Xcent, -116 * sin(radians(x)) + base, 1, UCG_DRAW_ALL);
    }

    Serial.print("Degree:  ");
    Serial.print(x);
    Serial.print("    ,Distance:   ");
    Serial.println(distance);

    if (x > 70 && x < 110) fix_font();

    ucg.setColor(0, 0, 155, 0);
    ucg.setPrintPos(0, 126);
    ucg.print("DEG: ");
    ucg.setPrintPos(24, 126);
    ucg.print(x);
    ucg.print("   ");
    ucg.setPrintPos(125, 126);
    ucg.print("   ");
    ucg.print(distance);
    ucg.print("cm   ");
  }

  delay(50);
  cls();
}

How It Works

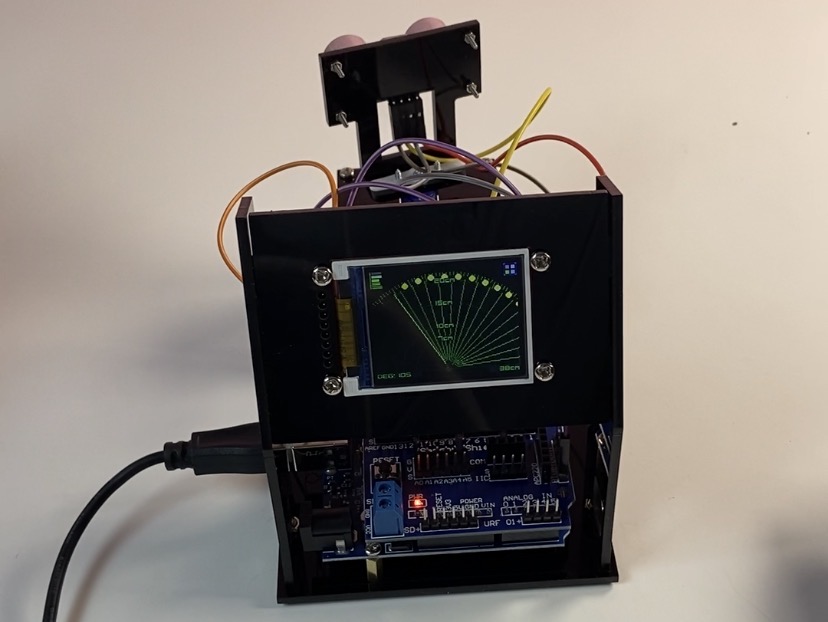

The SG90 servo motor is continuously swept back and forth across a 180-degree field of vision by the Arduino Uno R3. At each angle step, the HC-SR04 ultrasonic sensor releases high-frequency sound pulses and counts the reflection time to calculate the exact distance of neighboring obstructions.

sg90-servo-motor-is-continuously-swept-back-and-forth

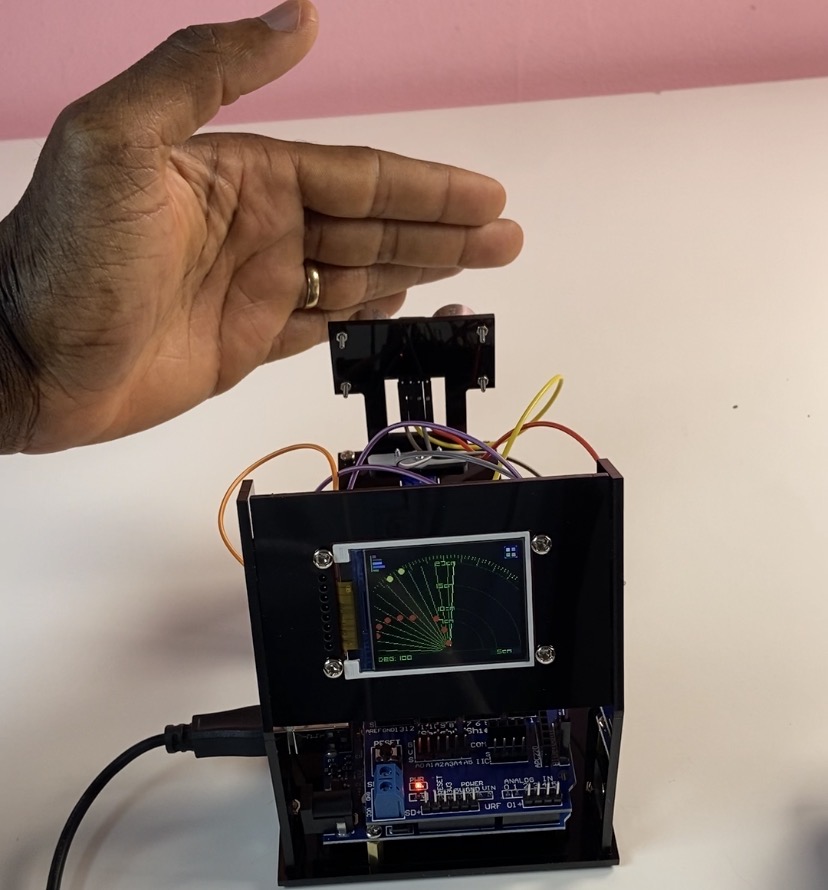

The Ucglib graphics driver processes these real-time angle and distance values to plot sweeping green scan lines onto the TFT display. Any object detected within a 100cm range appears as a distinct red dot on the radar grid, while the screen dynamically updates the current angle degree and distance reading along the bottom edge.
